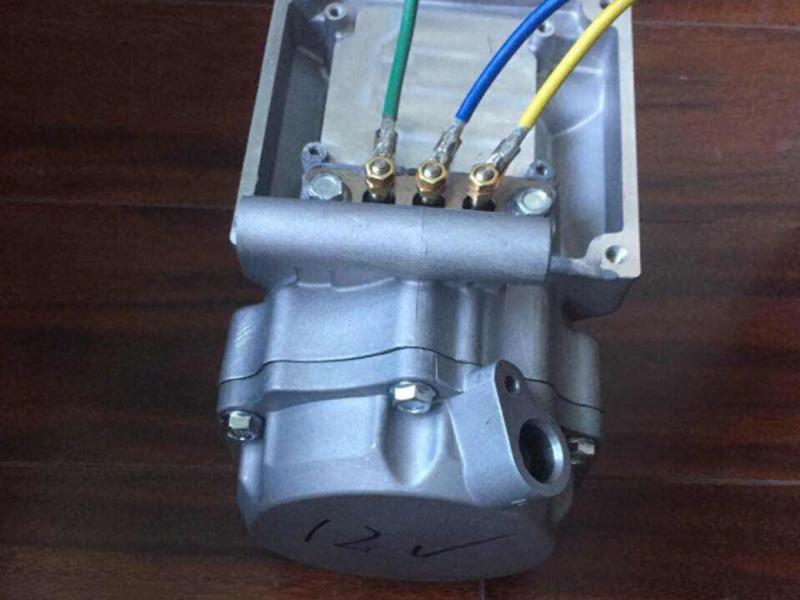

Application:
This hermetic 12V-24V car air conditioner compressor terminal mainly used in 12V-24V electric compressor that requires hermeticity, electrical insulation and high pressure withstanding while establishing electrical connections.
Materials:
Body: C45
Pin: C45 or 446SS copper core, hi-power pin
Glass: High temp fused glass
Ceramic:99#
We provide custom made service of various types of hermetic terminal based on your request. Our hermetic terminal has features as below
- Good insulator: static test at 500VDC, insulation greater than 5000MΩ
- Air tightness: remain air tight at 2.5MPa
- High voltage withstanding: greater than 2000VAC, current leakage less than 0.5Ma
- Corrosive resistant: with reference to salt spray standard GB/T2423.17, reaching level 8 and above
- Resistant to various refrigerant: R114a, R410a, R22 and CO2
- Resistant to cold and thermal shock: remain functioning from -40 degree Celsius to 300 degree Celsius.
Sintering process
- 1. Goods receiving
- 2. Incoming inspection
- 3. Steel needle etching
- 4. Oil removing on metal cap
- 5. Assembly and sintering
- 6. Air permeability inspection
- 7. Chemical nickel plating
- 8. Welding
- 9. Silicon process
- 10. Electrical property inspection
- 11. Appearance inspection
- 12. QA inspection
- 13. Packaging
- 14. Shipping
Surface treatment:
We adopt the environmental friendly electroplating technique, which is electroless nickel plating at 3-5 μm thickness. The nickel coat does not contain hazardous substances such as mercury, lead, cadmium and hexavalent chromium, reaching EU's standards. It passed the SGS environmental test.
- Corrosive resistant ability: After a 12 hours 5% salt spray test, the rusty area must not exceed 5% of the total area according to the ISO9227-2017 test standard.
- Salt spray test standard: GB/T2423.17,IEC60068-2-11,ISO4628-3

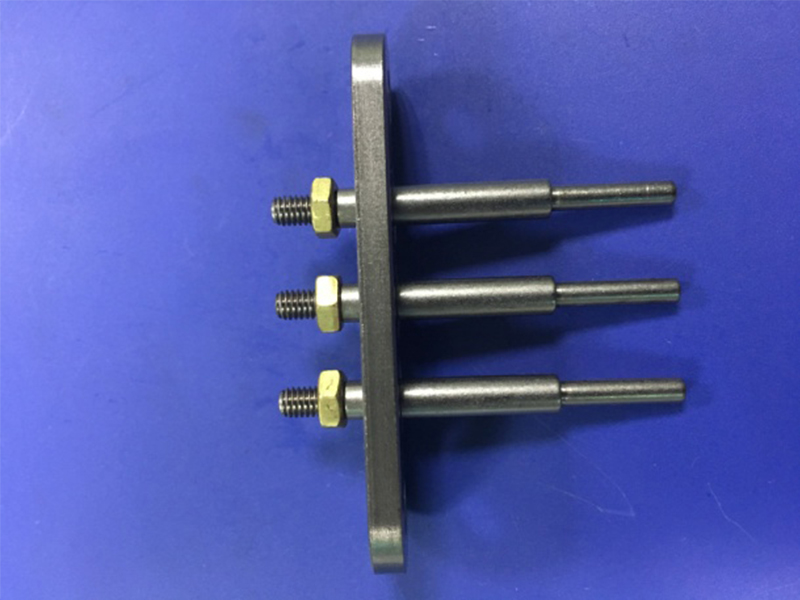

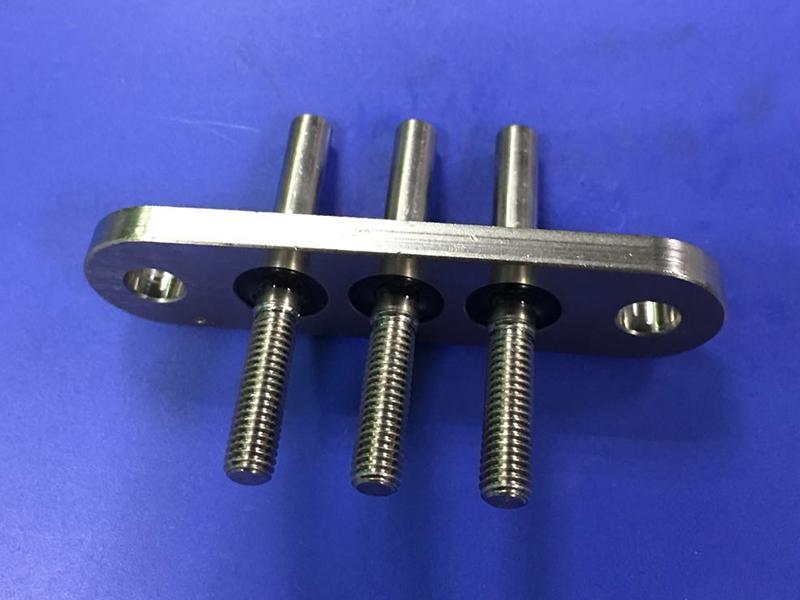

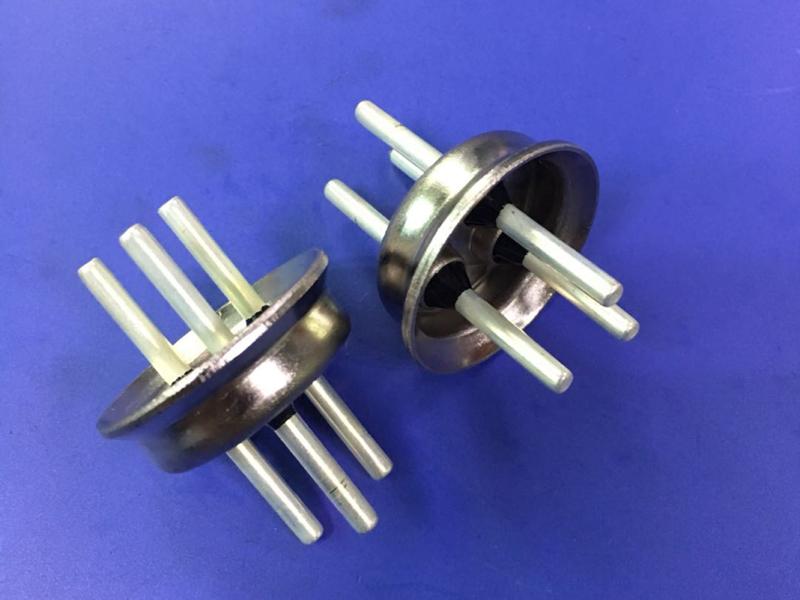

Tables below showing all models of the hermetic 24V car air conditioner compressor terminal we manufactured previously

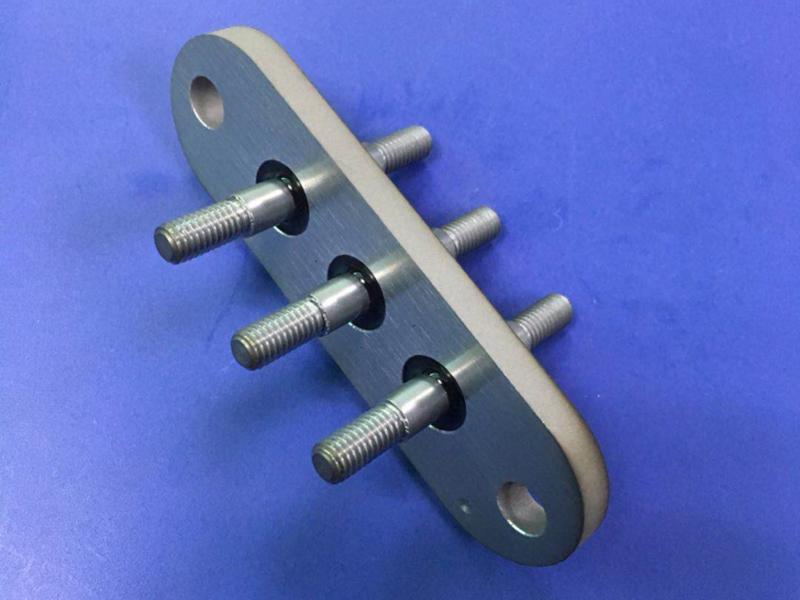

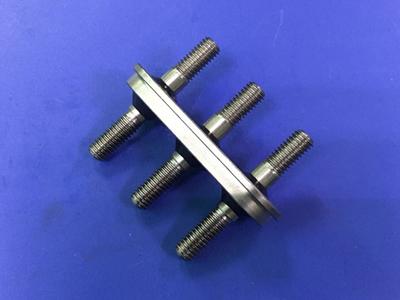

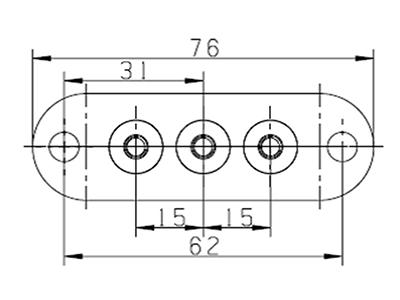

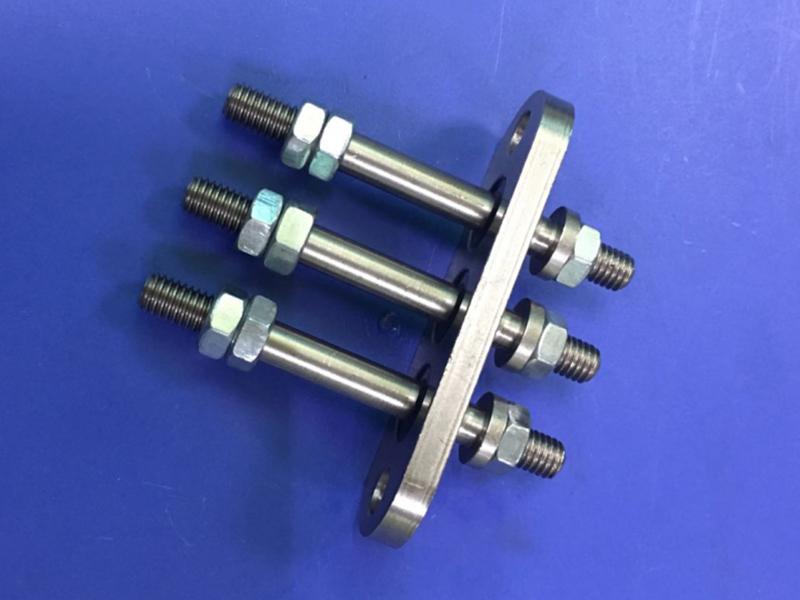

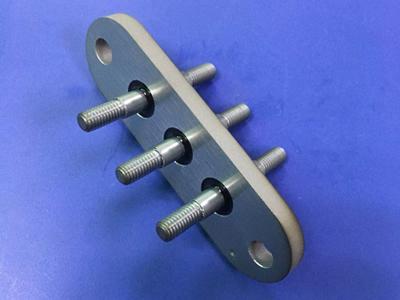

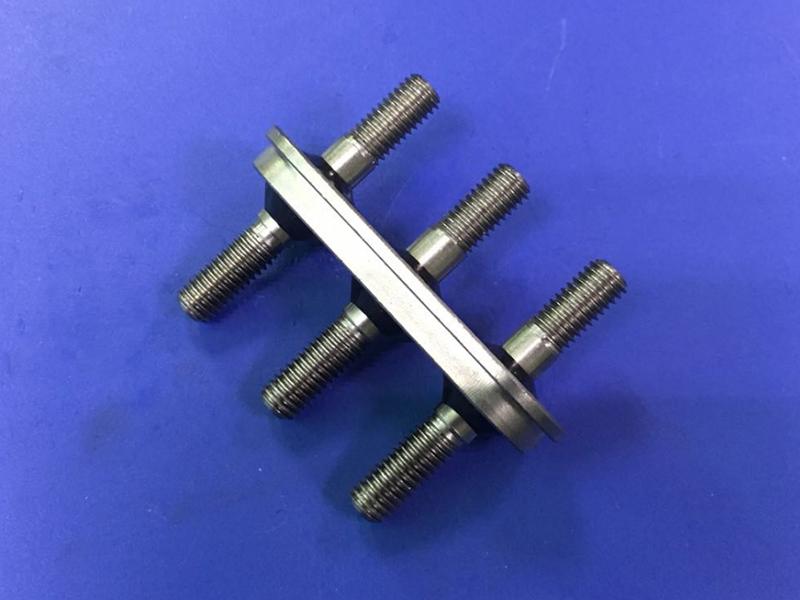

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-4-84
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-4-84 | 5mm | 15mm | Φ5.5mm | 42.5mm | 62mm | M5 thread | M5 thread | Electroless nickel | 60A |

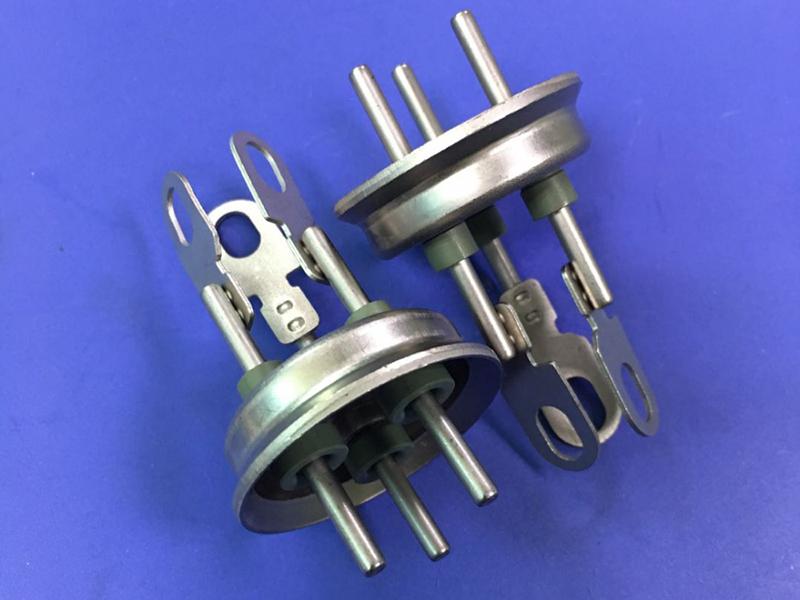

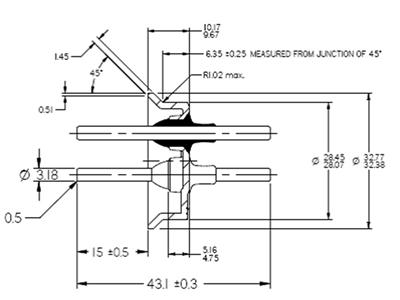

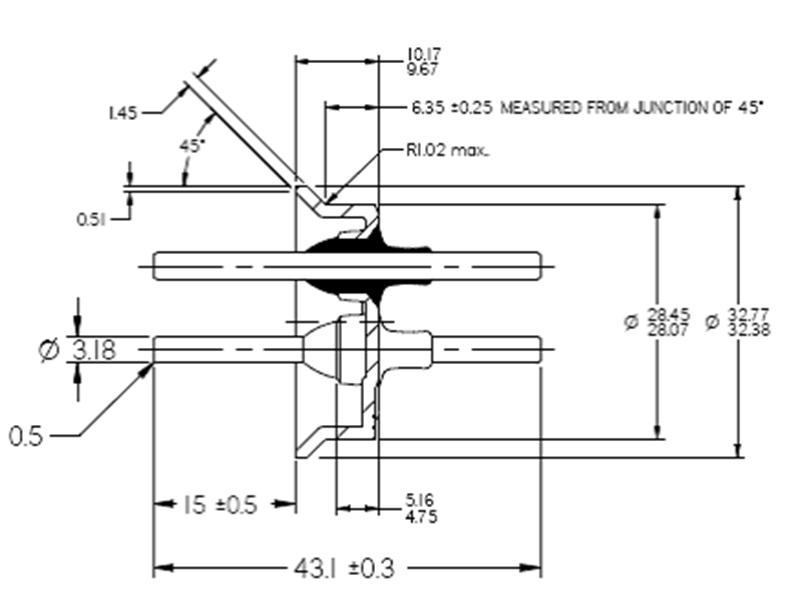

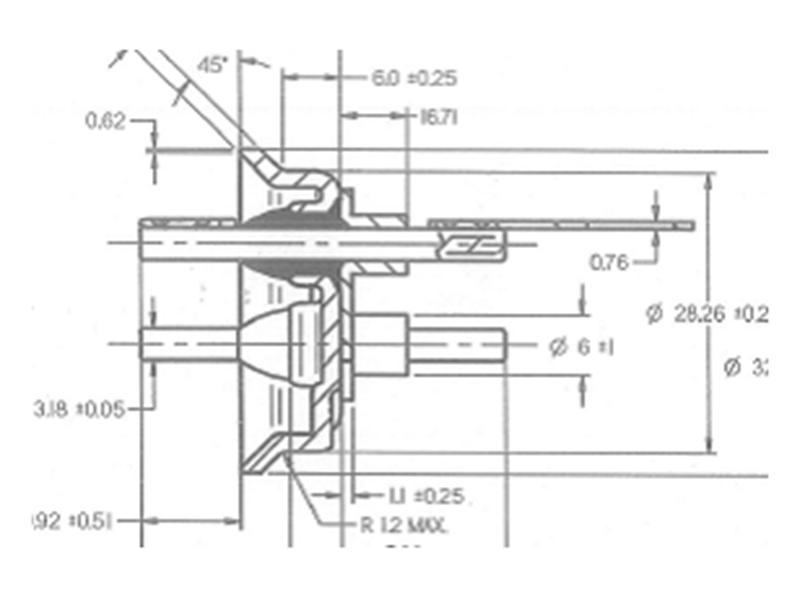

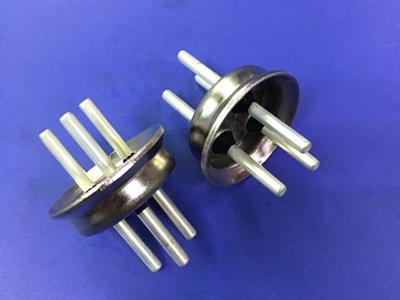

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-1-GY00C
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-1-GY00C | 1.45mm | 11.66mm | Φ3.18mm | 43.1mm | Circlip | Direct Insertion | Direct Insertion | Electroless nickel | 60A |

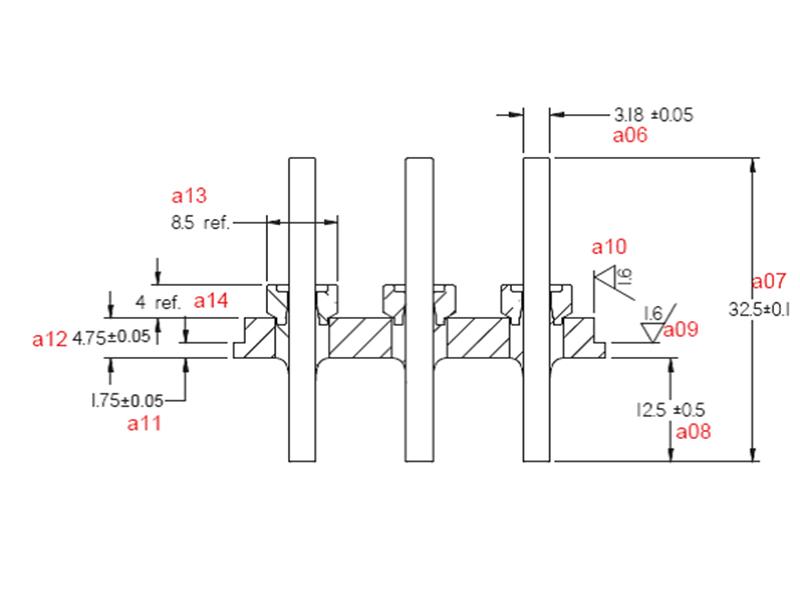

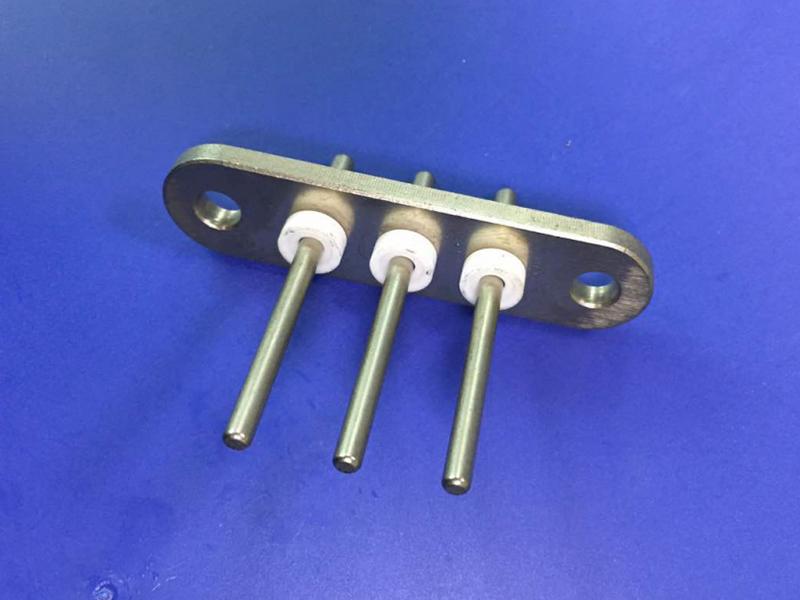

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-4-27C
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-4-27C | 4.75mm | 14mm | Φ3.18mm | 32.5mm | Circlip | Direct Insertion | Direct Insertion | Electroless nickel | 60A |

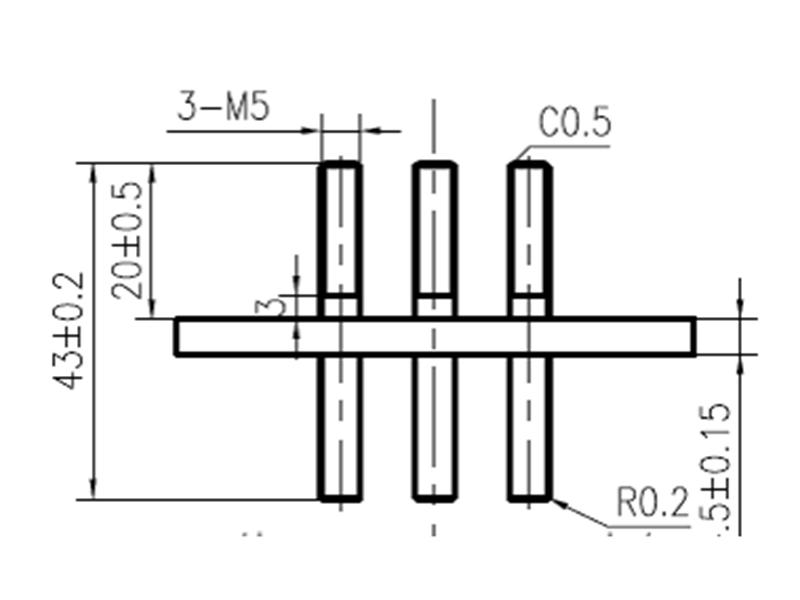

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-4-85
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-4-85 | 4.5mm | 12mm | Φ5.0mm | 43mm | 51mm | Direct Insertion | M5 thread | Electroless nickel | 60A |

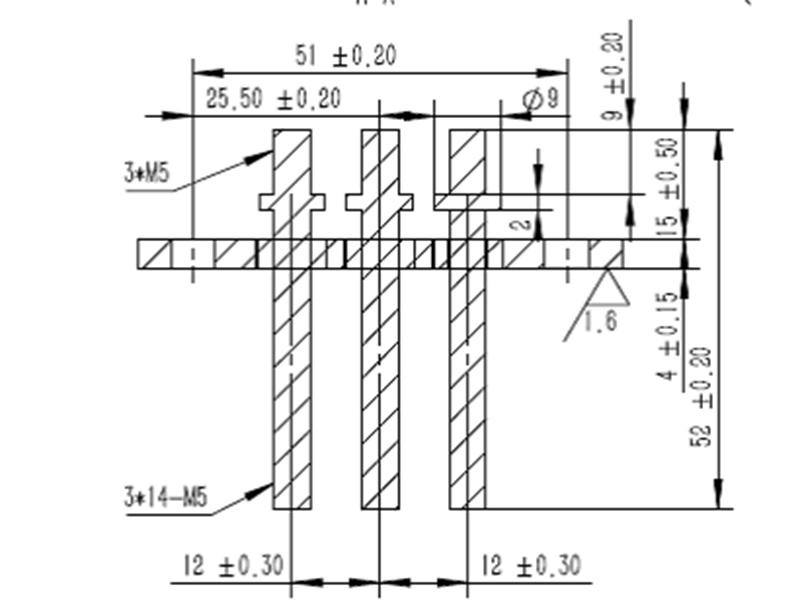

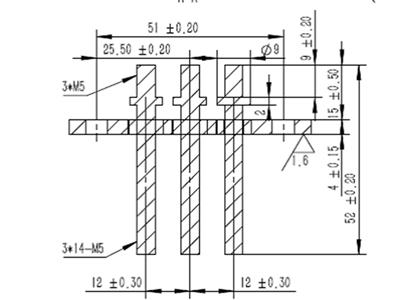

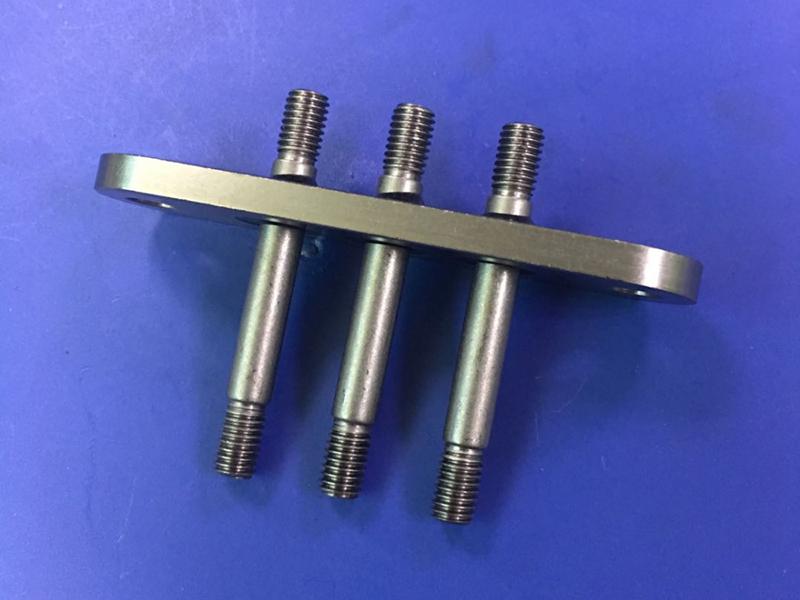

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-4-96104
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-4-96104 | 4mm | 12mm | Φ5.0mm | 52mm | 51mm | M5 thread | M5 thread | Electroless nickel | 60A |

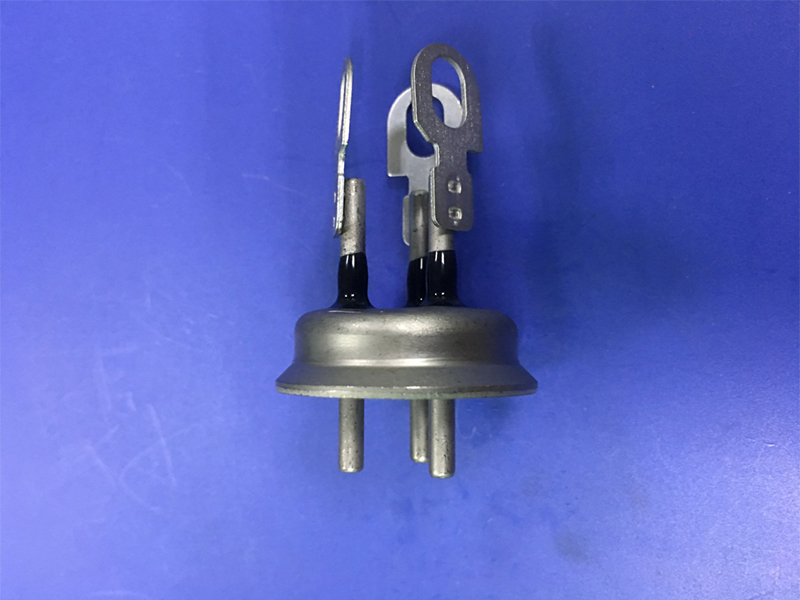

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-1-635I
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-1-635I | 1.45mm | 15.12mm | Φ3.18mm | 43.1mm | Welding | Direct Insertion | Bimetallic strip | Electroless nickel | 60A |

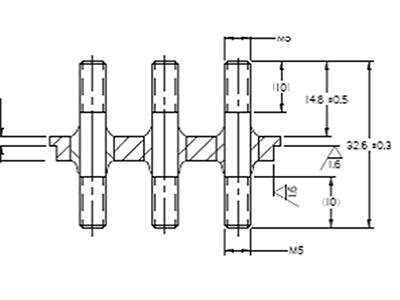

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-4-45
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-4-45 | 4.75mm | 14mm | Φ5.0mm | 32.5mm | Circlip | M5 thread | M5 thread | Electroless nickel | 60A |

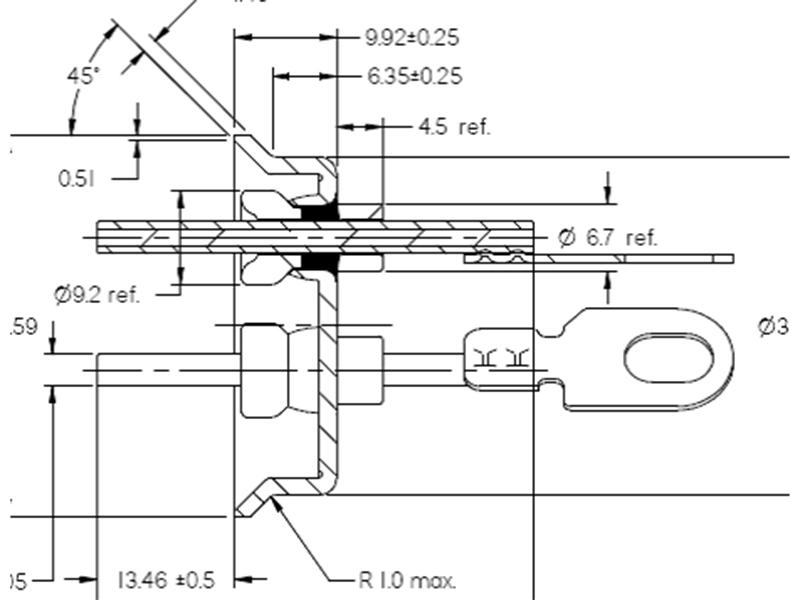

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-1-78SC
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-1-78SC | 1.45mm | 11.66mm | Φ3.18mm | 40mm | Welding | Direct Insertion | Bimetallic strip | Electroless nickel | 60A |

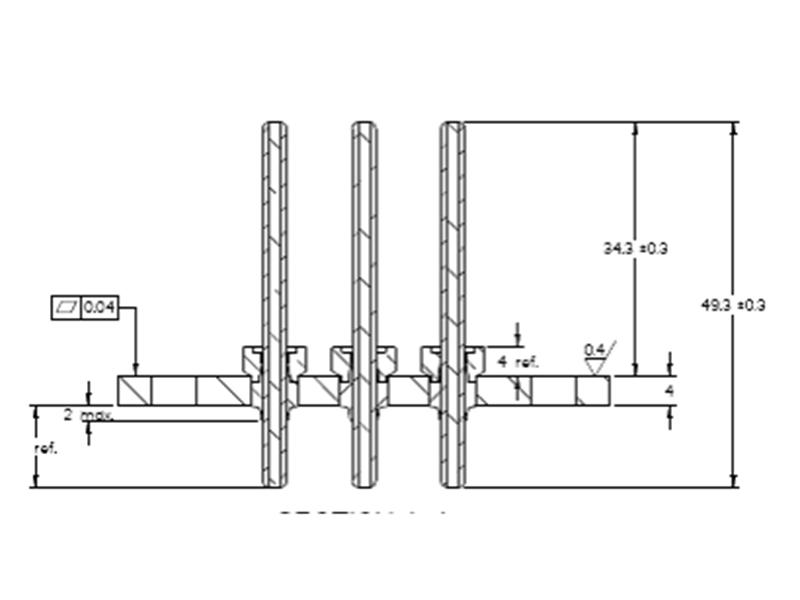

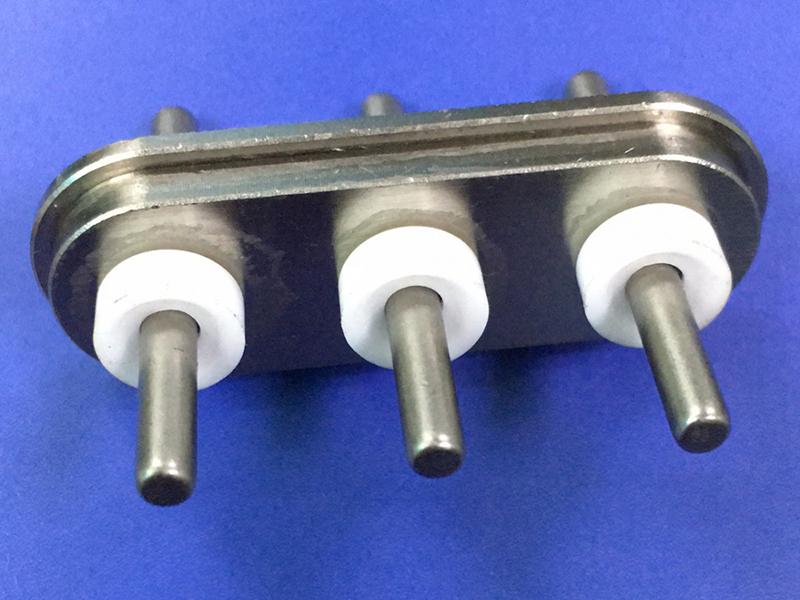

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-4-HQ00C
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-4-HQ00C | 4.0mm | 12mm | Φ3.18mm | 49.3mm | 51mm | Direct Insertion | Direct Insertion | Electroless nickel | 60A |

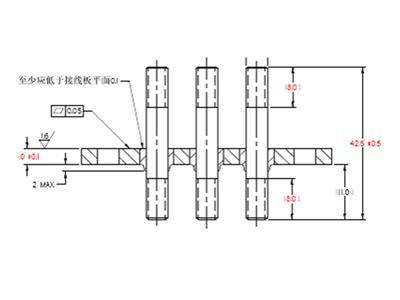

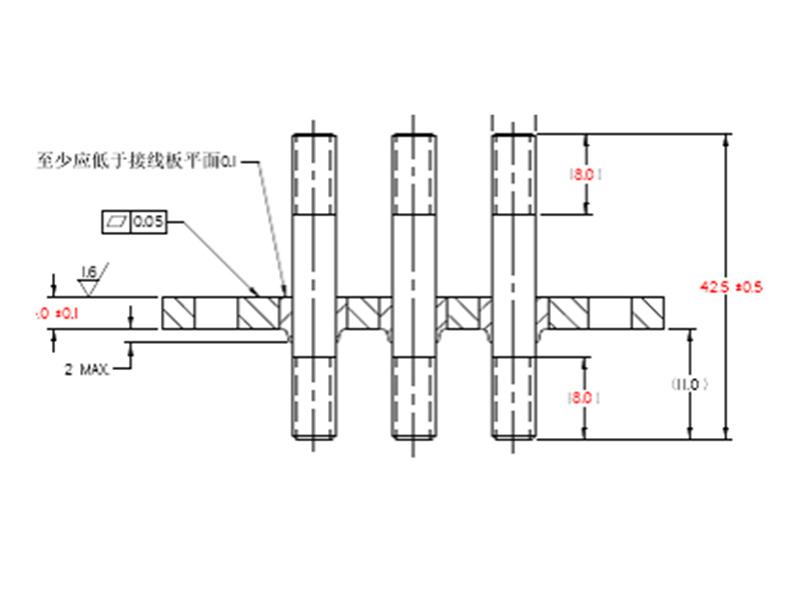

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-4-46M5
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-4-46M5 | 4.0mm | 12mm | Φ5.0mm | 42.5mm | 53mm | M5 thread | M5 thread | Electroless nickel | 60A |

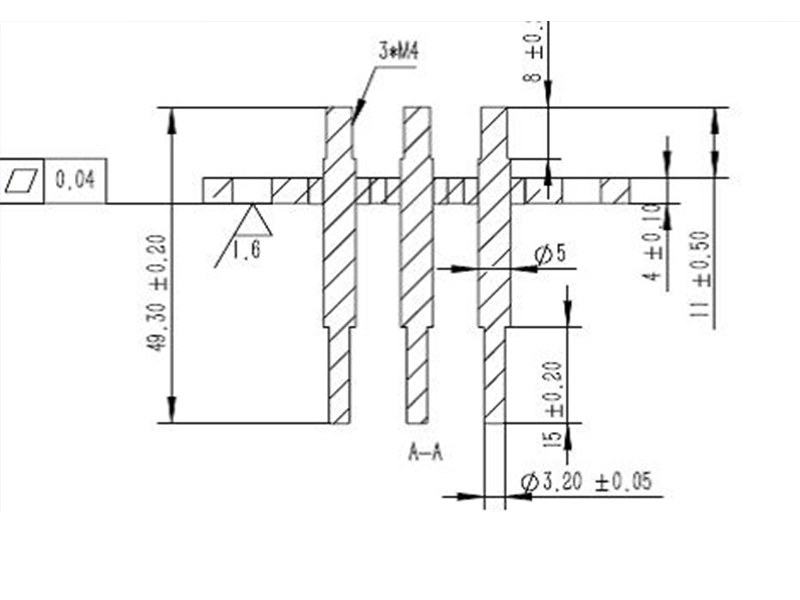

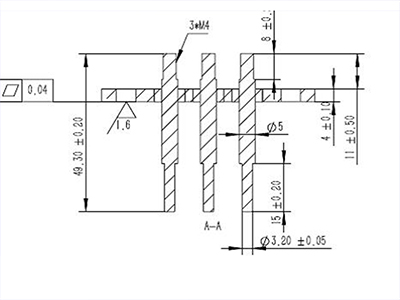

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-4-3.2M4
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-4-3.2M4 | 4.0mm | 12mm | Φ5.0mm | 49.3mm | 51mm | Φ3.2 Direct Insertion | M4 thread | Electroless nickel | 60A |

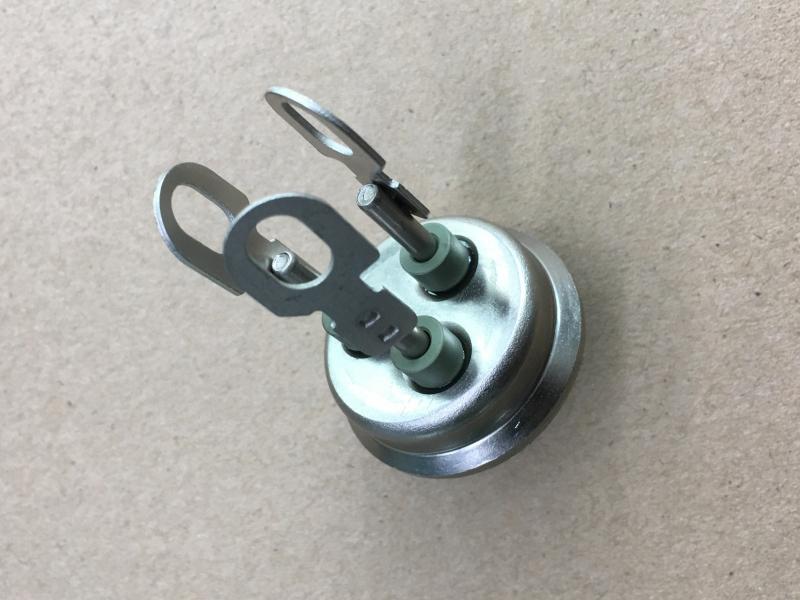

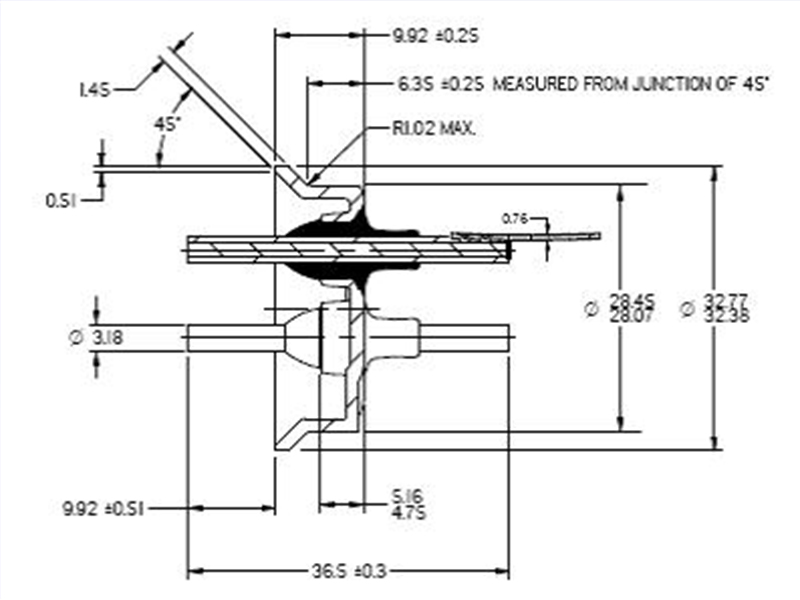

Hermetic 12V-24V Car Air Conditioner Compressor Terminal SC-1-70C
| Model | Body thickness | Distance between pins | Pin external diameter | Pin length | Distance between eyelets | Motor terminal connection | Controller terminal connection | Surface treatment | Maximum current |
| SC-1-70C | 1.5mm | 11.66mm | Φ3.18 mm | 36.5mm | | Φ3.2 Direct Insertion | Wire ear connection | Electroless nickel | 60A |
